YBC

This submodule enables interaction with the "YBC" bolometric correction (BC) grid described in Chen et al. (2019). These BCs are commonly used in conjunction with the PARSEC stellar models and are used in the "CMD webform" maintained by Leo Girardi. The YBC grid presents a uniform processing of a number of different stellar atmosphere libraries (see section 3.1 of Chen et al. (2019)) that each cover different parameter spaces (e.g., surface gravity and effective temperature) as well as different types of stars (e.g., Wolf-Rayet stars, white dwarfs). This approach allows YBC to be robust across a broad range of stellar evolutionary states and makes it very useful for generating synthetic stellar photometry. However, many of these libraries are only used when particular stellar conditions are met, and not all libraries cover the same range of stellar population parameters (metallicity in particular).

Our implementation currently only supports a subset of the libraries in the full YBC set. In particular, we support the PHOENIX models (used for cool stars), the ATLAS9 models (used for hot stars), the Koester & Tremblay white dwarf models, and the WM-basic O and B star models. Interpolation between these libraries as a function of stellar properties is supported by the YBCGrid and YBCTable types.

Obtaining Data

Our naming convention for photometric filter systems follows the directory structure of the YBC git repository – see supported systems below. This repository can be accessed at the URL below.

https://gitlab.com/parsec-group/public_repos/YBC_tables

The data are obtained by creating a local sparse clone of the YBC git repository with Scratch.jl and only pulling the data for photometric systems that you request. Presently we only support the standard BCs hosted under the "YBC" subdirectory. These data will be removed automatically if you uninstall the package. In the event you wish to uninstall the data for a particular photometric filter system, you can use BolometricCorrections.YBC.remove_table, though this should not typically be necessary as the data for each system is on average ~20 MB.

remove_table(f::AbstractString, prefix::AbstractString = "YBC")

Supported Systems

Supported filter systems available at the time these docs were built are listed below.

2mass               ciber2                      galexsismo                    lsstR1.9_gaiaEDR3_euclid_Roman2024  splus                    wfc3_202101_verywide
2mass_spitzer       clue_galex                  gulli                         lsst_gaia                           stis                     wfc3_202101_wide
2mass_spitzer_wise  decam                       hipparcos                     lsst_gaiaDR2                        stroemgren               wfc3_UVIS_narrow
CLAUDS              decam_vircam                hsc                           lsst_gaiaDR2maiz                    suprimecam               wfc3_medium
CSST                deltaa                      int_wfc                       lsst_wfirst_notional                swift_uvot               wfc3_uvisCaHK
LUVIT               denis                       iphas                         lsst_wfirst_proposed2017            tycho2                   wfc3_verywide
Roman2021           dmc14                       jpas                          megacam                             ubvrijhk                 wfc3_wide
Roman2024           dmc15                       jwst_fnl                      megacam_post2014                    ubvrijhklm               wfc3_wideverywide
SuperBIT            dualclump                   jwst_miri_wide                megacam_wircam                      ukidss                   wfi
TESS_2mass          duets                       jwst_narrow                   nicmosab                            unions                   wfi2
TESS_2mass_kepler   eis                         jwst_nircam_wide              nicmosvega                          uvit                     wfirst
UVbright            euclid_decam                jwst_nircam_widemedium        noao_ctio_mosaic2                   vertecs                  wfirst_J_H_1
WFIRST_plusHST      euclid_nisp                 jwst_nircam_widemedium_dec23  ogle                                vilnius                  wfirst_J_H_2
acs_2mass_spitzer   gaia                        jwst_nircam_widemedium_nov22  ogle_2mass_spitzer                  vircam                   wfirst_J_H_3
acs_hrc             gaiaDR2                     jwst_niriss_nov22             panstarrs1                          visir                    wfirst_J_H_7_1
acs_wfc             gaiaDR2_tycho2_2mass        jwst_nirspec                  phat_agb                            vista                    wfirst_J_H_7_2
acs_wfc3_nircam     gaiaDR2maiz                 jwst_wide                     phat_small                          vista_ukidss             wfirst_notional
acs_wfc_202101      gaiaDR2weiler               keck_nirc2                    phat_spitzer                        vphas                    wfirst_plusHST
acs_wfc_pos04jul06  gaiaDR2weiler_tycho2_2mass  kepler                        sage                                vst_omegacam             wfirst_proposed2017
acs_wfc_pre04jul06  gaiaDR3sim                  kepler_2mass                  sismo                               vst_vista                wfirst_shift_2
akari               gaiaEDR3                    lbt_lbc                       skymapper                           washington_ddo51         wfirst_shift_3
batc                gaia_tycho2_2mass           lsst                          sloan                               wasp                     wfpc2
bessell             galex                       lsstDP0                       sloan_2mass                         wfc3_202101_IR_narrow    wircam
caspir              galex_sloan                 lsstR1.9                      sloan_ukidss                        wfc3_202101_UVIS_narrow  wise
ciber               galexgaia                   lsstR1.9_gaiaEDR3_euclid      spitzer                             wfc3_202101_medium       ztf

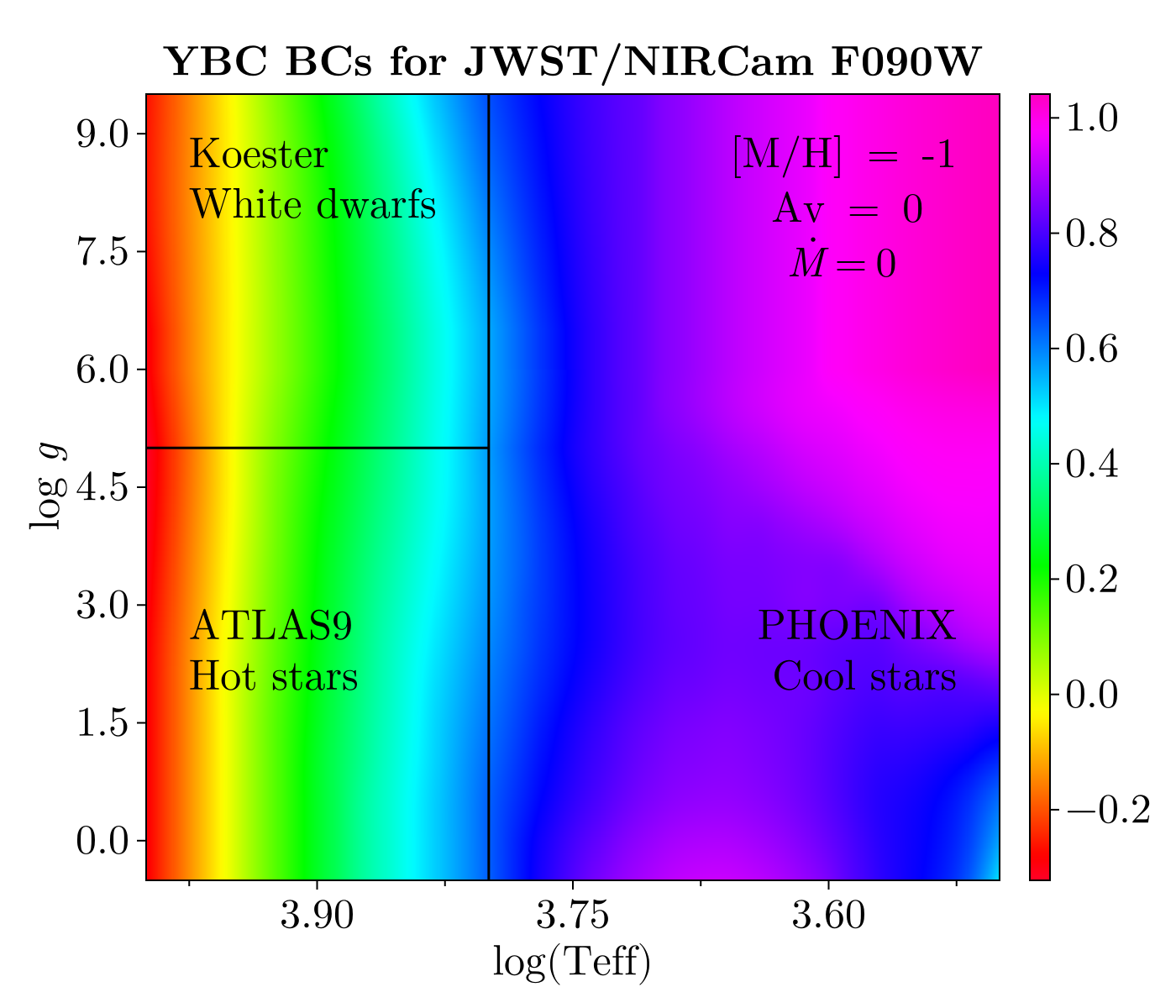

We illustrate which model library is used as a function of surface gravity logg and effective temperature Teff for stars without outflows (Mdot = 0) below.

We illustrate the transition between the ATLAS9 models used for hot stars and the WM-basic models used for O- and B-type stars with radiation-driven outflows at fixed surface gravity below.

Types

YBCGrid(grid::AbstractString;
        extrapolate::Bool = true,
        mass_loss_model::AbstractMassLoss = Bjorklund2021MassLoss())

julia> using BolometricCorrections.YBC: YBCGrid

julia> grid = YBCGrid("acs_wfc")
YBC bolometric correction grid for photometric system YBC/acs_wfc.

julia> grid(-1.01, 0.11) # Can be called to construct table with interpolated [M/H], Av
YBC bolometric correction table for system YBC/acs_wfc with [M/H] -1.01 and V-band extinction 0.11

YBCTable(grid::YBCGrid, mh::Real, Av::Real)

julia> using BolometricCorrections.YBC: YBCGrid, YBCTable

julia> grid = YBCGrid("acs_wfc")
YBC bolometric correction grid for photometric system YBC/acs_wfc.

julia> table = YBCTable(grid, -1.01, 0.011) # Interpolate table from full grid
YBC bolometric correction table for system YBC/acs_wfc with [M/H] -1.01 and V-band extinction 0.011

julia> length(table(25_0254.0, 2.54, 0.0)) == 12 # Returns BC in each filter
true

julia> size(table([25_0254.0, 25_0354.0], [2.54, 2.56], [0.0, 5e-6])) # `table(array, array)` is also supported
(12, 2)

julia> using TypedTables: Table # `table(Table, array, array)` will return result as a Table

julia> table(Table, [25_0254.0, 25_0354.0], [2.54, 2.56], [0.0, 5e-6]) isa Table
true

julia> table(25_0254.0, 2.54) == table(25_0254.0, 2.54, 0.0)
true

julia> table((logg = 2.54, Teff = 25_054.0, logL = 5)) isa AbstractVector
true

Chemistry API

We provide the BolometricCorrections.YBC.PARSECChemistry type to access information on the solar chemical abundances assumed for the PARSEC stellar models (see also Bressan et al. (2012)) and YBC bolometric correction library.

PARSECChemistry()

julia> using BolometricCorrections.YBC: PARSECChemistry, X, Y, Z, X_phot, Y_phot, Z_phot, MH;

julia> chem = PARSECChemistry();

julia> X(chem) + Y(chem) + Z(chem) ≈ 1 # solar protostellar values
true

julia> X_phot(chem) + Y_phot(chem) + Z_phot(chem) ≈ 1 # solar photospheric values
true

julia> MH(chem, Z(chem) * 0.1) ≈ -0.9400696788068212
true

julia> Z(chem, -0.9400696788068212) ≈ Z(chem) * 0.1
true

Note that in our conversions between $Z$ and [M/H], remembering that MH = log10(Z/X) - log10(Z⊙/X⊙), we use the photospheric solar values for Z⊙ and X⊙ (these are Z_⊙ and X_⊙ = 1 - Z_⊙ - Y_⊙ in Table 3 of Bressan et al. (2012)). This reproduces the relation between Z and [M/H] defined in Table 4 of Bressan et al. (2012), which is also used in the "CMD" webform provided by the PARSEC team.

The individual submodules that constitute the YBC library have different assumptions about the solar chemical mixture. When you interpolate a YBCGrid to a particular metallicity [M/H], this is converted to the corresponding metal mass fraction Z for PARSECChemistry. Each of the submodules are then interpolated to this common metal mass fraction – in this way, all the submodules are normalized to the same metal mass fraction, though their solar chemical mixtures are not identical. This is the same approach taken by Chen et al. (2019).

Metallicity Extrapolation

The sub-libraries that make up the YBC grid do not have uniform metallicity coverage. The metallicity coverage for the PHOENIX, ATLAS9, and WM-basic libraries is shown below. The Koester & Tremblay white dwarf library does not consider metallicity as it assumes pure hydrogen atmospheres for the white dwarfs – i.e., the white dwarf models are assumed to be valid for all initial protostellar metallicities.

NamedTuple{(:phoenix, :atlas9, :wmbasic)}(extrema(grid).MH for grid in (PHOENIXYBCGrid, ATLAS9YBCGrid, BolometricCorrections.YBC.WMbasic.WMbasicYBCGrid))

(phoenix = (-4.0f0, 0.5f0), atlas9 = (-2.5f0, 0.5f0), wmbasic = (-2.1917222f0, 0.14252938f0))

Due to the difference in metallicity coverage, there is a choice to be made regarding how to treat metallicities that fall outside the range of one or more of the constituent libraries. We generally wish to maximize the useful extent of the BC grid while minimizing errors due to extrapolation. For cool stars, PHOENIX is used which has the greatest metallicity range. Attempts to interpolate a YBCTable outside the bounds of the PHOENIX metallicity range will throw an error.

Extrapolation behavior is controlled by the extrapolate::Bool keyword argument that can be passed to YBCGrid which is true by default. When extrapolate = true, the ATLAS9 and WM-basic models will be extrapolated with a flat boundary condition to the same metallicity range as supported by the PHOENIX libary. Details and justification for this behavior is given below. This extrapolation can be disabled by setting the keyword extrapolate = false when constructing a YBCGrid.

ATLAS9

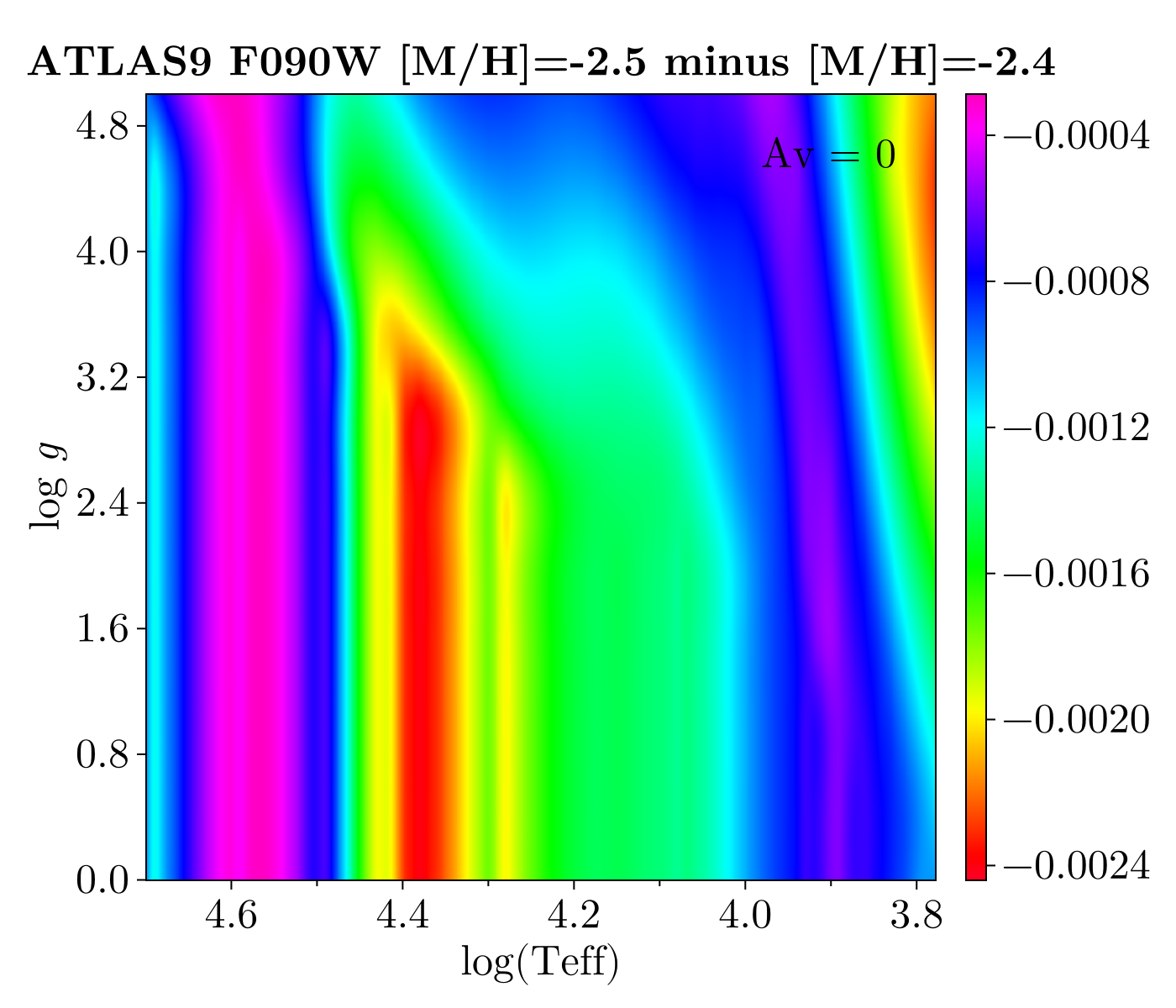

For hot stars, we can examine the differences in the BCs at the edges of the metallicity grids to determine whether the BCs are changing rapidly or not (essentially estimating the rate of change of the BCs with respect to the metallicity). The differences in the ATLAS9 BCs for the JWST/NIRCam F090W filter between metallicities [M/H] = -2.5 and [M/H] = -2.4 are shown below. The dynamic range of the differences is quite low, indicating that the BCs are not changing rapidly as the metallicity decreases – the magnitude of the derivative of the bolometric correction with respect to the metallicity is at most d(BC) / d([M/H]) = 0.024 mag / dex while the median is closer to 0.01 mag / dex.

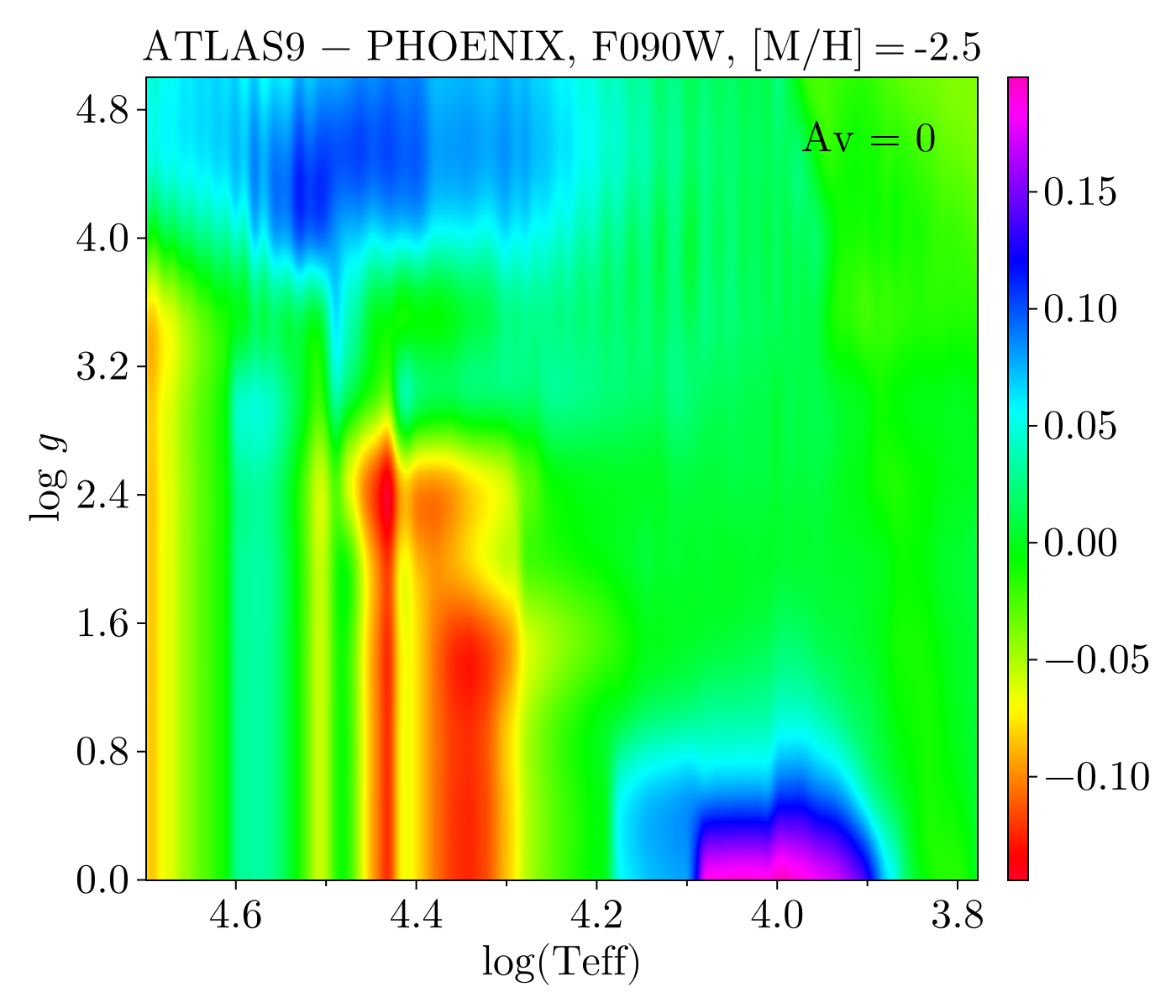

By way of comparison, the difference between the ATLAS9 BCs and the PHOENIX BCs at [M/H] = -2.5 can be much larger:

As the ATLAS9 models generally show better agreement with observations for hot stars, our default implementation (extrapolate = true in the YBCGrid constructor) is to extrapolate the ATLAS9 bolometric grid to match the metallicity range of the PHOENIX grid. This extrapolation is "flat" – when a metallicity outside the range of the ATLAS9 grid is requested (e.g., [M/H] = -3), we will use the BC table for the nearest valid metallicity ([M/H] = -2.5). Note that the upper limit of the metallicity grid for PHOENIX and ATLAS9 are the same ([M/H] = 0.5) so no extrapolation is used at the high-metallicity end.

WM-basic

We can perform the same examination for the WM-basic models, which have a more limited range of metallicity. Here we examine the change between the WM-basic BCs for the JWST/NIRCam F090W filter with fixed $\dot{M} = 10^{-6}$ solar masses per year (the mean value, as the grid covers $10^{-7}$ to $10^{-5}$). The median rate of change of the BC with the metallicity is still fairly low d(BC) / d([M/H]) = 0.05 mag / dex, but clearly there are some regions of parameter space where larger variation is exhibited.

Given that the WM-basic models are for hot O- and B-type stars, the alternative in YBC would be to use the ATLAS9 models which we discussed above. The ATLAS9 models have wider metallicity coverage, but do not consider the effects of outflowing material, which leads to significant discrepancies from the WM-basic models.

Clearly error due to extrapolating the WM-basic models in metallicity will be significantly less than the error we would otherwise incur by using the ATLAS9 models, which do not include the effects of stellar winds. Therefore, when using YBCGrid with keyword argument extrapolate = true, we extrapolate the WM-basic grid with flat boundary conditions to match the metallicity coverage of the PHOENIX library.
